SPECIFICATIONS

AMP Draw: AMP Draw

Brand Name: BYSSEA

Capability: 235CFM

High-concerned chemical: none

Origin: Mainland China

Working Voltage: 12 V

Features & Benefits

• Built-in mounting feet allow easy vertical or horizontal installation

• Very low current draw with high airflow and long service life

• Five-blade fan design maximizes airflow and efficiency

• Sealed motor shaft for enhanced moisture protection

• Corrosion-resistant ABS plastic housing

Typical Applications

• Boat bilge ventilation

• Engine compartments

• Marine galleys and heads

• Vehicle ventilation (cars, buses, RVs)

• Equipment and enclosed space ventilation

Product Description

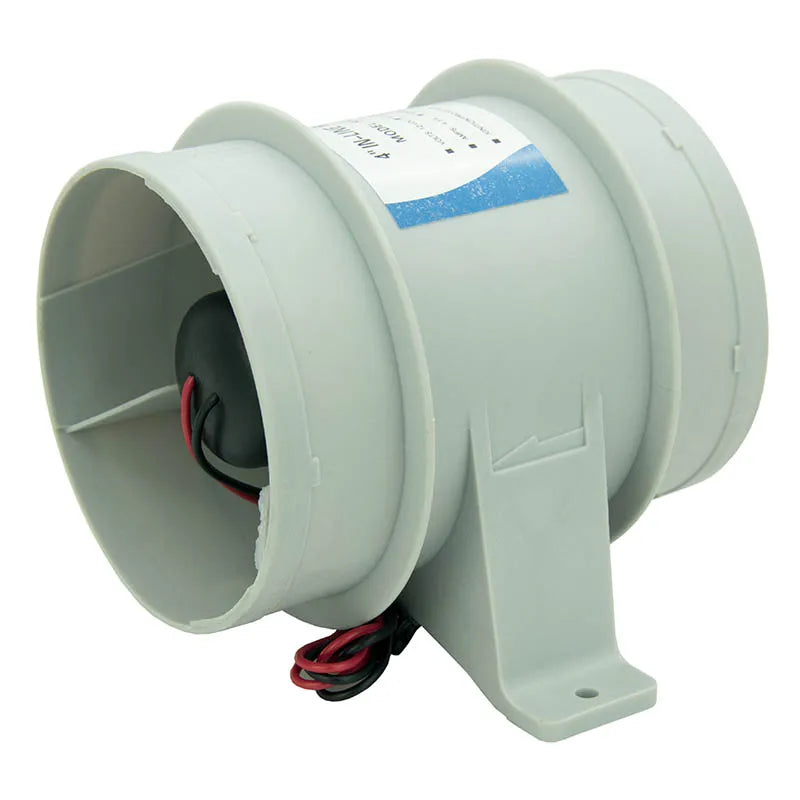

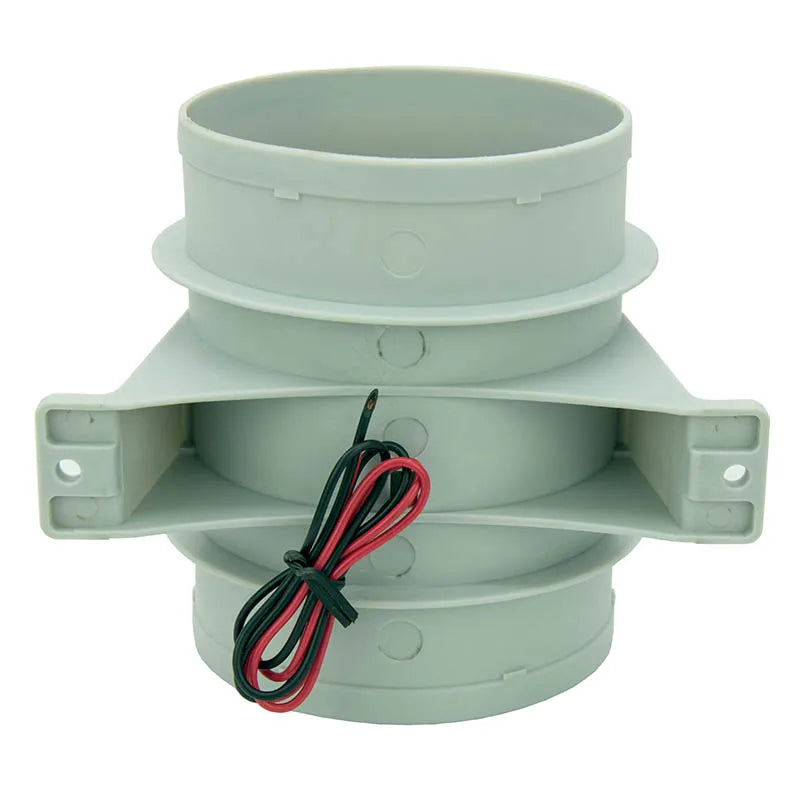

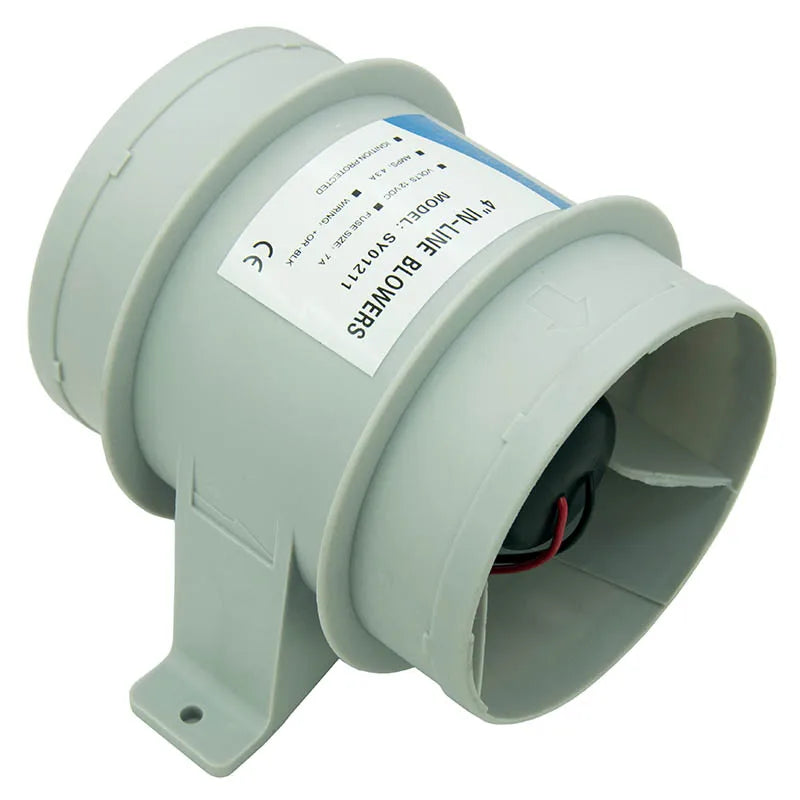

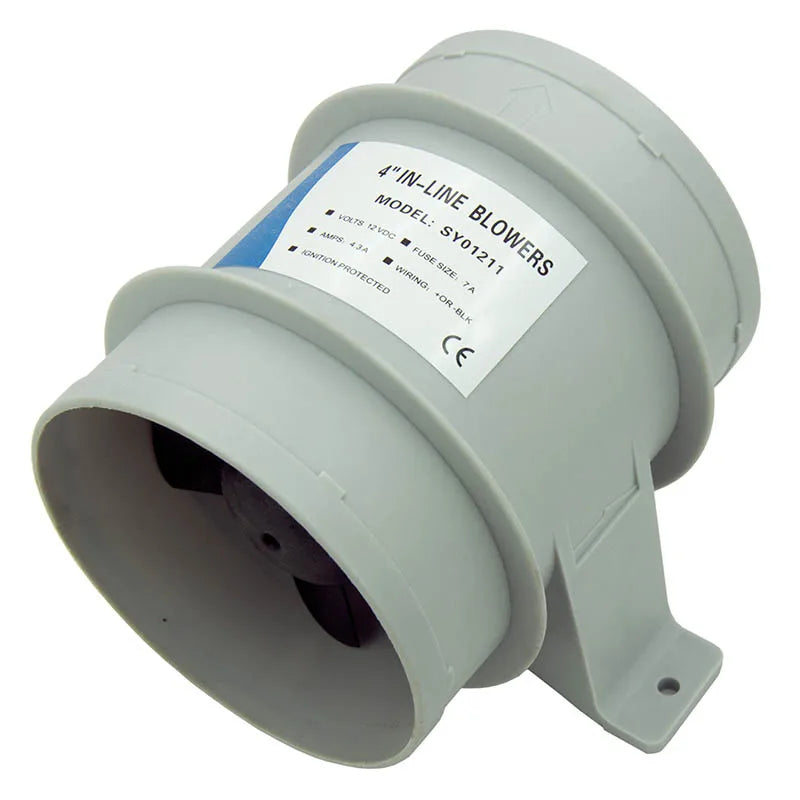

This blower is constructed from marine-grade light gray plastic with a black five-blade fan. It delivers efficient, high-volume airflow powered by a heavy-duty motor. The unit features slip-on inlet and outlet duct connections and a sealed motor shaft for reliable operation in humid or marine environments.

Rated at 12V DC, 4.3A, this blower uses a 7A fuse and provides an airflow of 6.7 m³/min (235 CFM).

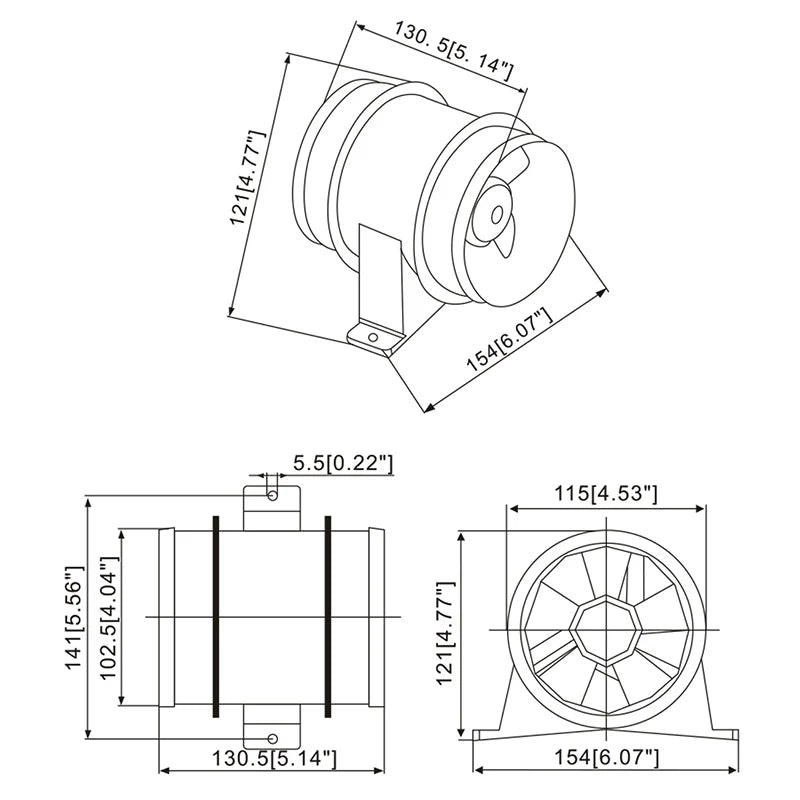

Dimensions & Mounting

• Overall Size: 6" L × 5 1/8" W × 4 3/4" D

• Mounting: (2) 1/8" diameter holes, approx. 5 1/2" center-to-center

• Hose Size: Fits 4" duct hose

• Electrical Connection: (2) bare wire leads

• Mounting hardware: Not included

Specifications

• Material: ABS Plastic

• Color: Gray / Black

• Voltage: 12V DC

• Current Draw: 4.3A

• Fuse Size: 7A

• Airflow: 6.7 m³/min (235 CFM)
