SPECIFICATIONS

Brand Name: BYSSEA

High-concerned chemical: none

Material: Other

Origin: Mainland China

Size: 36*27*17mm

Type: Other

【Anti-Corrosion & Lightweight Material】

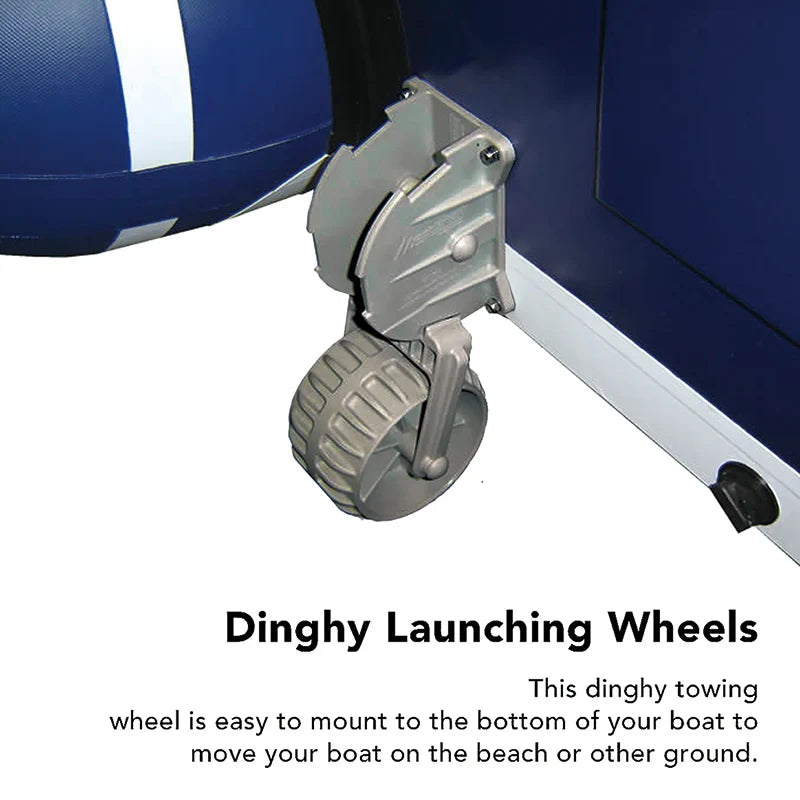

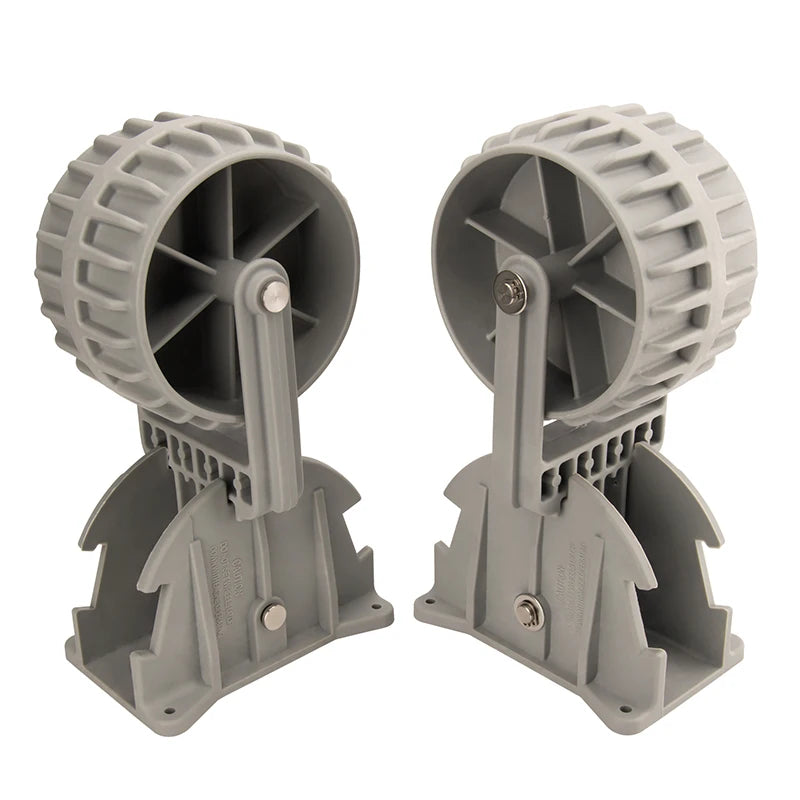

This marine retractable wheel set comes as a pair and is made from high-quality graphite-filled nylon resin, offering excellent resistance to corrosion, rust, UV exposure, and saltwater. Built to withstand harsh marine environments without degrading over time.

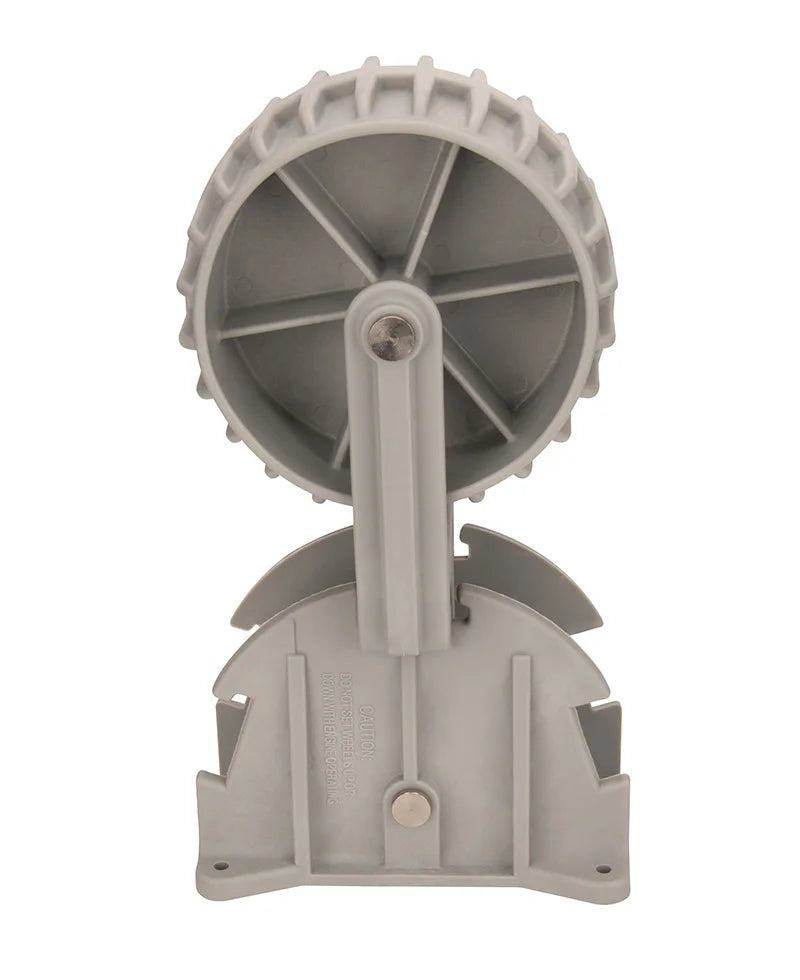

【3-Position Wheel Locking System】
The wheels feature a three-position locking mechanism, allowing secure positioning during use, transport, or storage. This helps prevent damage to your boat caused by dragging or accidental contact during launching and retrieval.

【Maintenance-Free Design】
Constructed from lightweight, self-lubricating materials, this boat dolly wheel kit requires no maintenance. It installs easily on wood, fiberglass, or aluminum transoms. The wheels fold down smoothly for moving the boat and lock up securely when not in use.

【Wide Application】
Designed for easy transport of small lightweight boats up to 250 lbs (110 kg), including inflatables, aluminum car-top boats, tenders, and small RIBs. Ideal for moving boats effortlessly over pavement, sand, beach, or other surfaces.

【Quick & Easy Installation】

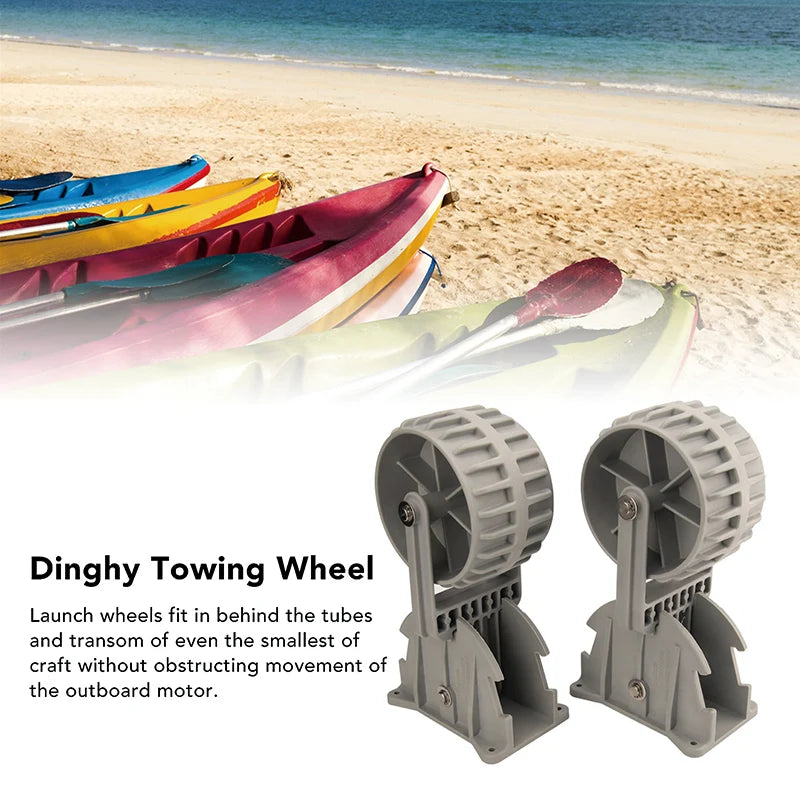

The wheels drop down 160 mm from the mounting base attached to the transom, ensuring smooth operation without interfering with the outboard motor—even on smaller boats.

FEATURES

• Quick and easy installation

• Lightweight and compact design

• Puncture-free wheels

• Includes mounting instructions

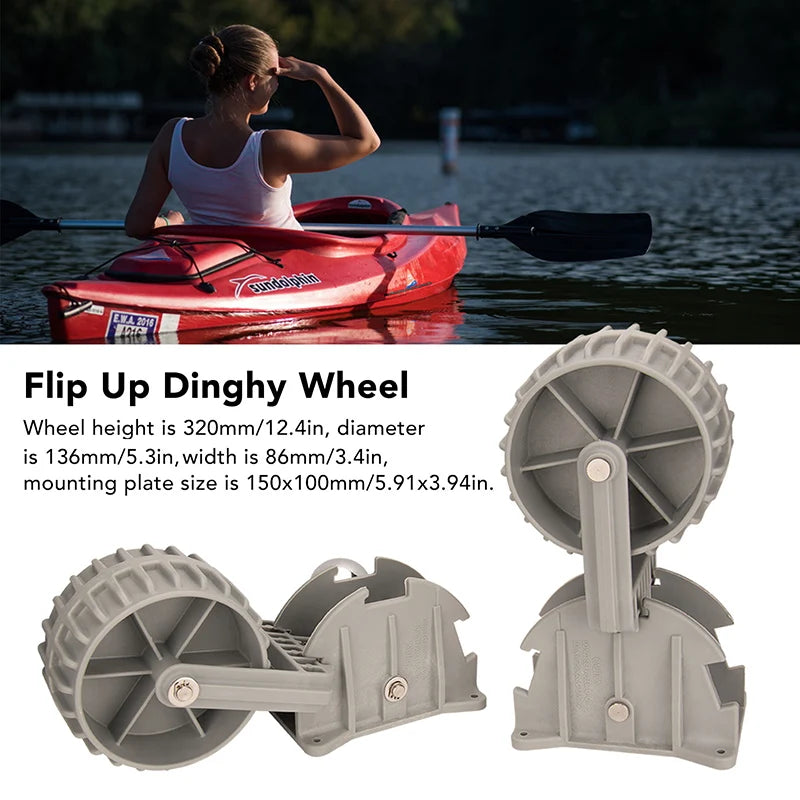

DIMENSIONS

• Fixing Plate: 150 × 100 mm

• Fixing Hole Spacing: 132 × 82 mm (4 holes)

• Overall Height: 320 mm

• Wheel Diameter: 145 mm

• Wheel Width: 90 mm
